  2. Computer Servo Controlled Ball Screw Driven Universal Testing Machines

We are Manufacturer, Supplier, Exporter of Computer Servo Controlled Ball Screw Driven Universal Testing Machines and our setup is situated in Sangli, Maharashtra, India. We provide our whole range to ALL OVER THE WORLD, but majorly we serve our customers from countries like Middle East, Saudi Arabia, Africa, USA, Oman, Dubai Abu Dhabi, UAE, Kenya, Ethiopia, Uganda, Malaysia & Indonesia.


Universal- Testing Machines request

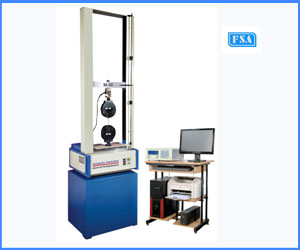

Computer Servo Controlled Ball Screw Driven UTMs (Model: M Series) are state-of-the-art testing machines designed to deliver precise and reliable results for material testing across various industries. These UTMs are engineered with advanced servo control technology and ball screw mechanisms to ensure superior accuracy, repeatability, and operational efficiency. Constructed using high-grade materials like MS (Mild Steel) and SS (Stainless Steel), they offer robust performance and durability. The M Series models come equipped with user-friendly interfaces, high-resolution load cells, and extensometers to cater to diverse testing requirements, including tensile, compression, bending, and shear tests. Designed to meet global standards, these machines are suitable for laboratories, research institutions, and industrial applications.

Salient Features :

  • Advanced Servo Control Technology for Precise Testing.
  • Ball Screw Mechanism Ensuring Smooth and Reliable Operation.
  • High-Resolution Load Cells for Accurate Force Measurement.
  • User-Friendly Software with Real-Time Data Analysis.
  • Durable Construction with MS (Mild Steel) and SS (Stainless Steel).
  • Customizable Grips and Fixtures for Varied Applications.
  • Compact and Ergonomic Design for Space Optimization.
  • Compliance with International Testing Standards.
  • The DC valve is provided which directs oil flow either to analogue or computerized control panel. One can use one system at a time.
  • Both Analogue & Computerized control panel is provided.

Applications :

  • Tensile Testing of Metals, Plastics, and Polymers.
  • Compression Testing for Components and Materials.
  • Flexural and Bending Tests for Beams and Structural Elements.
  • Shear Tests for Fasteners and Welded Joints.
  • Material Research in Laboratories and R&D Centers.
  • Quality Assurance in Manufacturing Industries.
  • Educational Demonstrations in Engineering Institutes.

Technical Specification for Analogue Cum Computerised Versions


MODEL TUE-CN-100 TUE-CN-200 TUE-CN-400 TUE-CN-600 TUE-CN-1000 TUE-CN-2000
Analogue System
1’st Range (kN) 0 - 100 0 - 200 0 - 400 0 - 600 0 - 1000 0 - 2000
Least Count (kN) 0.2 0.4 0.8 1 2 4
2’nd Range (kN) 0 - 50 0 - 100 0 - 200 0 - 300 0 - 500 0 - 1000
Least Count (kN) 0.1 0.2 0.4 0.5 1 2
3’rd Range (kN) 0 - 25 0 - 50 0 - 100 0 - 120 0 - 250 0 - 500
Least Count (kN) 0.05 0.1 0.2 0.2 0.5 1
4’th Range (kN) 0 - 10 0 - 20 0 - 40 0 - 60 0 - 100 0 - 200
Least Count (kN) 0.02 0.04 0.08 0.1 0.2 0.4
Computerised System
Measuring Range (kN) 0 - 100 0 - 200 0 - 400 0 - 600 0 - 1000 0 - 2000
Least Count (kN) 0.01 0.02 0.04 0.06 0.1 0.2
Load Range in kN with accuracy of measurement ±1% 2 to 100 4 to 200 8 to 400 12 to 600 20 to 1000 40 to 2000
Resolution of Piston Movement (mm) 0.1 0.1 0.1 0.1 0.1 0.1
Over all dimensions approx. (mm) 1950 x 800 x 1850 2000 x 800 x 1900 2100 x 800 x 2060 2200 x 800 x 2400 2350 x 800 x 2700 3000 x 800 x 3600
Weight approx. (kg.) 1300 1400 2200
 3200
 4200
 8600

Common Specification for all Versions:


MODEL TUE-CN-100 TUE-CN-200 TUE-CN-400 TUE-CN-600 TUE-CN-1000 TUE-CN-2000
Measuring Capacity (kN) 100 200 400 600 1000 2000
Max. Tensile Clearance at fully decended piston position (mm) 50 - 700 50 - 700 50 - 700 50 - 800 50 - 850 50 - 900
Max. Clearance for Compression Test (mm) 0 - 700 0 - 700 0 - 700 0 - 800 0 - 850 0 - 900
Distance between columns (mm) 450 500 500 600 750 850
Piston Stroke (mm) 150 200 200 250 250 300
Max. straining speed at no load (mm/min) 300 150 150 100 80 45
Power Supply 3 phase 415V 50Hz AC
Total H.P. 1.5 1.5 2.5 2.5 4.0 6.5

Standard Accessories for all Version:


MODEL TUE-CN-100 TUE-CN-200 TUE-CN-400 TUE-CN-600 TUE-CN-1000 TUE-CN-2000
Pair for compression plate dia (mm) 120 120 120 120 160 220
Tension Test Jaws
For Round Specimen dia (mm) 10 - 20 10 - 20 10 - 25 10 - 25 10 - 30 20 - 40
For Round Specimen dia (mm) 20 - 30 20 - 30 25 - 40 25 - 40 30 - 50 40 - 60
For Round Specimen dia (mm) - - - 40 - 55 50 - 70 60 - 80
For Flat Specimen Thickness (mm) 0 - 10 0 - 10 0 - 15 0 - 15 0 - 22 0 - 22
For Flat Specimen Thickness (mm) 10 - 20 10 - 20 15 - 30 15 - 30 22 - 44 22 - 45
For Flat Specimen Thickness (mm) - - - - 44 - 65 45 - 70
Max. width of Flat Specimen (mm) 50 50 65 70 70 90
Transverse Test
Adjustable Roller Support of width (mm) 150 150 150 160 160 200
Diameter (mm) 30 30 30 50 50 70
With Max. adjustable clearance (mm) 450 500 500 600 800 900
Punch tops of radius (mm) 6 6 10 16 16 30
Punch tops of radius (mm) 12 12 16 22 22 40
